2022 / Day 08: Data: OpenStreetMap
There are some tools out there to do exactly this (e.g. osmosis) on an industrial scale, and you should definetely use the right tools for this job. But let’s say (for the sake of this #30DayMapChallenge theme) I want to do this by hand. And when I say by hand I mean compose a SQL query in PostgreSQL/PostGIS that would (based on my input data) output a correctly formatted XML. Except for data content/tagging of course :).
As a side-gain doing it yourself, without any 3rd party software, will surely help understand the OSM XML data model too. The best resource for diving into OpenStreetMap tagging is the OSM wiki Tags page.
For the past year or so I’ve been involved in a project utilizing
OSRM running custom profiles,
on custom street network data (meaning non-OpenStreetMap pbf). For checking
if the data is converted correctly (i.e. mostly meaning if I have understood
the OSM specification correctly, and for example that I have not misspelled
conditional, which btw happened last November leading me on a 4-hour bug
hunting spree of why-oh-why are conditional restrictions not picked up), and

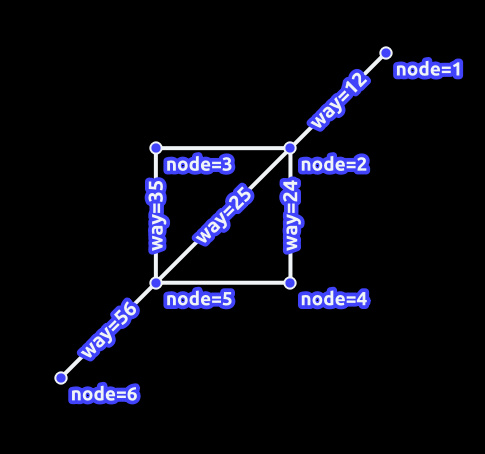

do custom profiles work as expected, I ended up composing this mini-graph in
multiple tag forms to check if the returned route from
OSRM
is the one that I was really expecting.
And with a gazillion of corresponding OSM XML-format files I could test on the go very quickly:
- are the correct maxspeed values processed per profile,
- are the correct restrictions picked up per per profile,
- does access tagging work?
- what about conditional restrictions? do they work?
- … and if I change this little bit, will all of it still function as expected or come dumbling town.
These files are pretty small and you want to keep them to the bare minimum in
them - so for example if testing for access / acess:forward /
access:backward / access:backward=no emergency:backward=yes you don’t want
other things (like no_turn restrictions) messing with your result. It’s
really easier to manage them by hand (and yes. Edit XML by hand. You read
correctly!) because you’ll only be changing a few tag values per specific test.
But in essence it would be possible to set up a pipeline from a
PostgreSQL/PostGIS database based on a query like todays (see below).
Although I myself am not a huge fan of xml based formats because of their verbosity and poor streaming capabilities (here’s looking at you, Inspire :D ), nevertheless PostgreSQL has some fantastic XML processing functions which are absolutely priceless for a job like this. The ones that are used most frequently during todays query are:
xmlelementwhich produces an xml element with a given name, attributes and contentxmlattributeswhich creates attributes for the xml element, andxmlaggwhich aggregates mutiple xml elements together (think of this as aggregating withst_collectin case of geometries).
And sorry, todays output image will be a png screenshot file of XML file contents. Which is just as good as
Yes, sure we have locations of our shops. Please find them in the attachment of this email which is a jpg file of a photo of a paper map we took where we have marked all the locations with a ballpoint pen.
P.S. pretty-print added to the file by hand :)
with
/* nodes are the basic building blocks of all OSM data.
Everything is either a node or is made up of a series of nodes.
Node id values start from the north and follow left-to-right ordering
*/
nodes as (
select
node.id, st_snaptogrid(st_transform(node.geom, 4326), 0.000001) as geom
from (
values
(
1,
st_setsrid(
st_point(614500, 6502500 + sqrt(500*500 + 500*500)),
3301
)
),(
2,
st_setsrid(
st_point(614500, 6502500),
3301
)
),(
3,
st_setsrid(
st_point(614000, 6502000),
3301
)
),(
4,
st_setsrid(
st_point(615000, 6502000),
3301
)
),(
5,
st_setsrid(
st_point(614500, 6501500),
3301
)
),(
6,
st_setsrid(
st_point(614500, 6501500 - sqrt(500*500 + 500*500)),
3301
)
)
) node(id, geom)
),
/* Construct ways out of nodes with some basic attributes (highway, oneway,
access, maxspeed). For easier understanding (w/o looking at the map)
way_id values are concatenated from node id values, so you'd know that
way_id=12 is between nodes 1 and 2.
*/
ways as (
select
way.*
from (
values
(
12,array[1,2],'primary',false,
true,true,50,50
),(
23,array[2,3],'primary',false,
true,true,50,50
),(
24,array[2,4],'primary',false,
true,true,50,50
),(
25,array[2,5],'primary',false,
true,true,1,1
),(
35,array[3,5],'primary',false,
true,true,50,50
),(
45,array[4,5],'primary',false,
true,true,50,50
),(
56,array[5,6],'primary',false,
true,true,50,50
)
) way(
id, node_ids, highway, oneway,
access_fwd, access_bck, maxspeed_fwd, maxspeed_bck
)
),
restrictions as (
/* Construct restrictions for the ways. These will be encoded as
"relations" in the XML.
*/
select
restriction.*
from (
values
(
1223, 12, 2, 23,
'no_right_turn @ (Mo-Fr 07:00-08:00;Sa-Su 19:00-20:00)',
'emergency'
),(
6554, 65, 5, 54,
'no_right_turn @ (Mo-Fr 07:00-08:00;Sa-Su 19:00-20:00)',
'emergency'
),(
1225, 12, 2, 25,
'no_turn',
null
)
) restriction (
id, from_way, via_node, to_way,
val, except_mode
)
),
meta as (
/* a general section of various meta that we'll write into the xml*/
select
session_user as user, r.oid as uid,
bounds.minx, bounds.miny, bounds.maxx, bounds.maxy,
to_char(clock_timestamp(), 'YYYYMMDDHH24MISS') as changeset,
0 as version
from (
select
st_envelope(st_collect(nodes.geom)) as e
from
nodes
) b
join lateral (
select
min(st_x(pts.geom)) as minx, min(st_y(pts.geom)) as miny,
max(st_x(pts.geom)) as maxx, max(st_y(pts.geom)) as maxy
from st_dumppoints(b.e) pts
) bounds on true
left join
pg_roles r on
r.rolname=session_user
)
/* ... and bringing it all together*/
select
xmlelement(
name osm,
xmlattributes(
0.6 as version
'@tkardi for #30DayMapChallenge 2022 | Day 8: OpenStreetMap' as generator,
'Reversed challenge: turning your spatial road network data to OSM XML' as attribution,
'https://tkardi.ee/writeup/30daymapchallenge/08-openstreetmap-2022/' as license
),
xmlagg(d.content)
)
from (
/* the BOUNDS tag for the output file*/
select
xmlelement(
name bounds,
xmlattributes(
round(minx::numeric,6) as minlon,
round(miny::numeric,6) as minlat,
round(maxx::numeric,6) as maxlon,
round(maxy::numeric,6) as maxlat
)
) as content
from
meta
union all
/* the NODE tags for the output*/
select
xmlelement(
name node,
xmlattributes(
nodes.id as id,
meta.version as version,
meta.uid as uid,
meta.user as user,
meta.changeset as changeset,
round(st_y(nodes.geom)::numeric,6) as lat,
round(st_x(nodes.geom)::numeric,6) as lon
)
) as content
from
nodes, meta
union all
/* the WAY tags for the output*/
select
xmlelement(
name way,
xmlattributes(
ways.id as id,
meta.version as version,
meta.uid as uid,
meta.user as user,
meta.changeset as changeset
),
nd.v,
access.val,
maxspeed.val,
xmlelement(
name tag,
xmlattributes(
'highway' as k,
ways.highway as v
)
)
)
from
meta,
ways
/* Add node.id references to way*/
join lateral (
select
xmlagg(
xmlelement(
name nd,
xmlattributes(n.id as ref)
) order by n.i
) v
from
unnest(ways.node_ids)
with ordinality n(id, i)
) nd on true
/* prepare access tag and possible combinations depending
on direction
*/
join lateral (
select
xmlagg(
xmlelement(
name tag,
xmlattributes (
k.key as k,
(array[
coalesce(ways.access_fwd,true),
coalesce(ways.access_bck,true)
])[k.i] as v
)
)
) as val
from (
select
case
when coalesce(ways.access_fwd,true) =
coalesce(ways.access_bck, true) then
array['access']
else
array['access:forward','access:backward']
end as k
) a
join lateral unnest(a.k) with ordinality k(key, i) on true
) access on true
/* prepare maxspeed tag and possible combinations depending
on direction
*/
join lateral (
select
xmlagg(
xmlelement(
name tag,
xmlattributes (
k.key as k,
(array[
coalesce(ways.maxspeed_fwd,0),
coalesce(ways.maxspeed_bck,0)
])[k.i] as v
)
)
) as val
from (
select
case
when coalesce(ways.maxspeed_fwd,0) =
coalesce(ways.maxspeed_bck, 0) then
array['maxspeed']
else
array['maxspeed:forward','maxspeed:backward']
end as k
) a
join lateral
unnest(a.k) with ordinality k(key, i) on true
) maxspeed on true
union all
/* the RELATION tags for the output*/
select
xmlelement(
name relation,
xmlattributes(
restrictions.id as id,
meta.version as version,
meta.uid as uid,
meta.user as user,
meta.changeset as changeset
),
xmlelement(
name member,
xmlattributes(
'way' as type,
restrictions.from_way as ref,
'from' as role
)
),
xmlelement(
name member,
xmlattributes(
'node' as type,
restrictions.via_node as ref,
'via' as role
)
),
xmlelement(
name member,
xmlattributes(
'way' as type,
restrictions.to_way as ref,
'to' as role
)
),
xmlelement(
name tag,
xmlattributes(
'restriction'||k.c as k,
restrictions.val as v
)
),
ex.v,
xmlelement(
name tag,
xmlattributes(
'type' as k,
'restriction' as v
)
)
)
from
meta,
restrictions
join lateral (
/* is it a conditional restriction or simple*/
select
case
when restrictions.val ~ '@' then ':conditional'
else ''
end as c
) k on true
join lateral (
/* parse excepts for restrictions*/
select
case
when restrictions.except_mode is not null then
xmlelement(
name tag,
xmlattributes(
'except' as k,
restrictions.except_mode as v
)
)
else ''
end as v
) ex on true
) d
;
