2022 / Day 13: Five minute map

I had another idea first, but other than a joke (a bad one at that) there was really nothing to tie it to the theme of “five minutes”. Fortunately the following surfaced as a replacement: how to create a five minute graticule.

There are other (more or less complicated) ways of achieving exactly the same result but I’m going to be doing it through the generation of points every 1/12th of a degree (e.g. five minutes) spanning between -180 and 180 degrees west to east and 90 and -90 degrees north to south. The points are shifted from the origin at [0,0] using st_translate with longitude and latitude 5-minute values created with generate_series:

• generate_series(-90 * 12, 90 * 12, 1) for creating north-south 5 minute shifts
• generate_series(-180 * 12, 180 * 12, 1) for creating west-east 5 minute shifts

Essentially we could use any point of origin and generate a series with

• generate_series(0, 180 * 12, 1) for creating north-south 5 minute shifts
• generate_series(0, 360 * 12, 1) for creating west-east 5 minute shifts

aswell but then we’d have to do some extra mathematics to get the longitude and latitude series values to the usual -180..180 and -90..90 range.

“Yes, but why are you babbling on with this point nonsense?” you might ask. Well you don’t have to deal with it if you’re exclusively working with Plate Carrée where you can simply define the first and last points of graticule lines and be done with it. Problems arise as soon as you want to transform yourself out from the equirectangular world, e.g. to your local coordinate system. In that case, the more nodes you have - the better.

As an example here, consider a line like:

select
    st_makeline(
        st_point(0,53.876776,4326),
        st_point(62,53.876776,4326)
    )

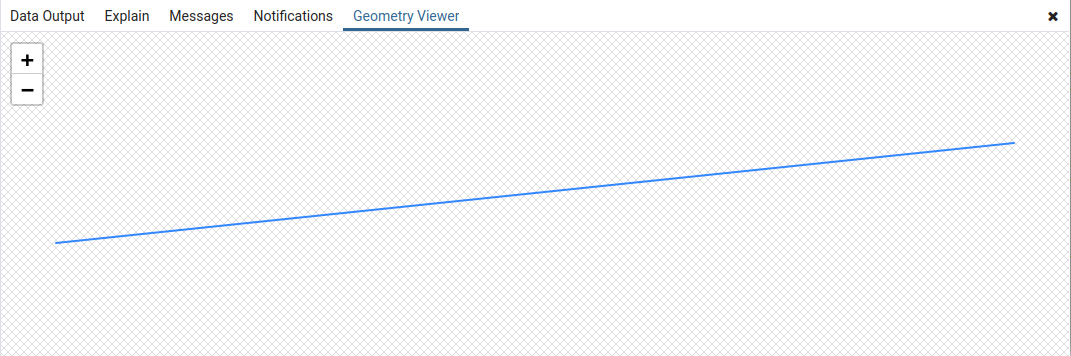

which is a perfectly straight line (on the “sphere”) connecting the coast of UK to the border of Kazakhstan. Now if I wanted to st_transform it to for example the Estonian national coordinate reference system L-EST'97 (epsg:3301), I’d expect the curvature of the sphere to kick in, but it doesn’t:

select
    st_transform(
        st_makeline(
            st_point(0,53.876776,4326),
            st_point(62,53.876776,4326)
        ),
        3301
    )

How can we enforce this curvature? Simples! By adding more nodes. The more the merrier… :) So the previous example can be re-done with st_segmentize as

select
    st_transform(
        st_segmentize(
            st_makeline(
                st_point(0,53.876776,4326),
                st_point(62,53.876776,4326)
            ),
            0.1
        ),
        3301
    )

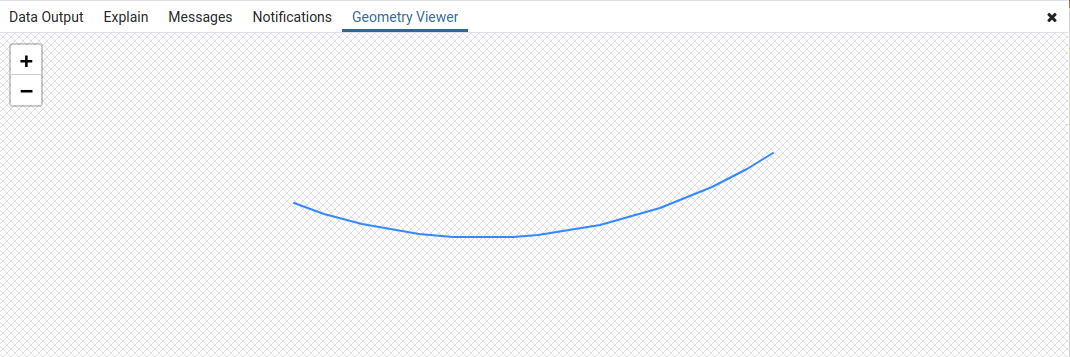

By adding a node on the linestring every 0.1 degrees (because the input of distance to st_segmentize goes in the unit of srid - epsg:4326, therefore degrees) we’ll arrive at a far better looking line which can be more easily transformed between different reference systems.

So essentially this point generation + aggregating points to lines business that follows in todays query could instead (and even more efficiently i think) be replaced by

select
    st_segmentize(
        st_makeline(
            st_point(-180, s/12.0, 4326),
            st_point(180, s/12.0, 4326)
        ),
        1.0/12.0
    )
from
    generate_series(-90 * 12, 90 * 12, 1) s

for creating parallel lines for the graticule “every 5 minutes”. But I’ll still take the longer route. Mainly because it will make generating the graticule for a specific region only a lot easier. We’d only need to add another CTE to define the bounds and then before calling st_makeline filter out only those points that are within the desired area of interest.

And of course - we could use the st_squaregrid for doing exactly all of this but where’s the fun in that? :) Additionally, st_squaregrid gives us polygons not east/west + south/north spanning lines.

The output image for today will feature the freshly baked five-minute-graticule transformed to epsg:3301 with the overlaid bounds of the TMS (local) gridset for the spatial reference system (unit of length is a meter), used e.g. by the Estonian Land Board.

output image

with
    d as (
        select
            lon, lat,
            st_translate(
                st_point(0,0,4326),
                lon/12.0,
                lat/12.0
            ) as geom
        from
            generate_series(-90*12, 90*12, 1) lat,
            generate_series(-180*12, 180*12, 1) lon
    ),
    mers as (
        select
            lon,
            case
                when lon::int=lon then true
                else false
            end as deg,
            geom
        from (
            select
                round(lon/12.0, 2) as lon,
                st_makeline(
                    array_agg(geom order by lon, lat)
                ) as geom
            from
                d
            group by
                lon
        ) f
    ),
    pars as (
        select
            lat,
            case
                when lat::int=lat then true
                else false
            end as deg,
            geom
        from (
            select
                round(lat/12.0, 2) as lat,
                st_makeline(
                    array_agg(geom order by lat, lon)
                ) as geom
            from
                d
            group by
                lat
        ) f
    )
select
    row_number() over()::int as oid, *
from (
    select lat as v, deg, geom from pars
    union all
    select lon as v, deg, geom from mers
) u
;
