sde.st_point generation horrors

For the first time in years (possibly almost a decade?) I bumped into needing to do some work with an ESRI SDE geodatabase. Luckily running on PostgreSQL, I took the chance at looking at the sde schema functions that are available. Long story short: there’s nothing particularly grandiose to get excited about compared to the toolset that PostGIS delivers. Which kind of reminded me how at the time to get things done without button-clicking I ended up with:

• cast the ESRI st_geometry to wkb
• cast the wkb to PostGIS geometry
• do whatever geometry-ops you need to do in PostGIS
• cast to wkb
• cast to st_geometry
• keep fingers crossed that nothing breaks on ESRI side.

This time around though the task was simple enough: given longitude, latitude, and height coordinates generate a 3D point geometry. And as the (latest) docs suggest this can be done using the sde.st_point function. The function itself is overloaded - meaning the same function can have different call signatures and the correct “version” of the function is decided upon the input data types. For example:

• sde.st_point(clob, integer)
• sde.st_point(bytea, integer)
• sde.st_point(double, double, integer)

are the same interface to (the same, or as it is in this case) different functions in the backend.

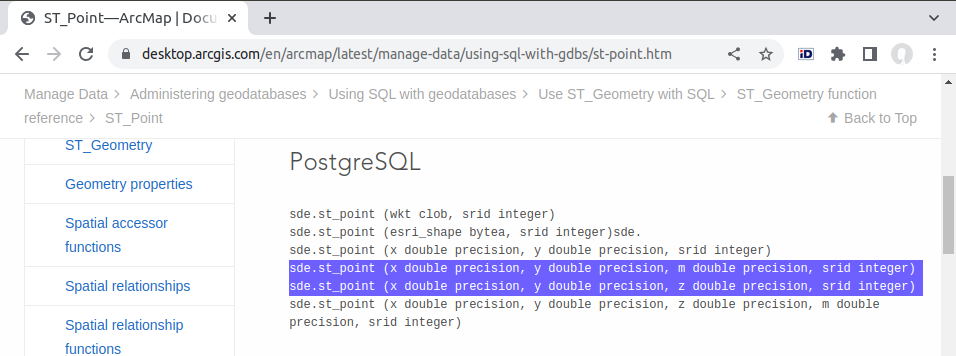

This in turn means that you cannot have two overloads with the same call signatures as the docs are trying to lead to believe:

How would the database know which one of these are you trying to run if you say

select sde.st_point(0.0, 0.0, 0.0, 4326) as shape

Is the third argument supposed to stand for m or z? And even if it was possible to have two overloaded functions in PostgreSQL with the same input datatypes but different argument names there really is no function called st_point with arguments of the types (double, double, double, int) in the sde schema:

select
    p.proname, pg_catalog.pg_get_function_identity_arguments(p.oid), prosrc, proargnames
from
    pg_proc p, pg_namespace n
where
    p.pronamespace = n.oid and
    p.proname='st_point'::name and
    n.nspname = 'sde'
;

which returns a bunch of functions, none of which have named arguments contrary to what the docs claim.

proname	pg_get_function_identity_arguments	prosrc	proargnames
st_point	text, integer	ST_Point_WKT
st_point	double precision, double precision	ST_Point_Coord1
st_point	double precision, double precision, integer	ST_Point_Coord1
st_point	double precision, double precision, double precision, double precision	ST_Point_Coord2
st_point	double precision, double precision, double precision, double precision, integer	ST_Point_Coord2
st_point	bytea, integer	ST_Point_Shape
st_point	bytea	ST_Point_Shape

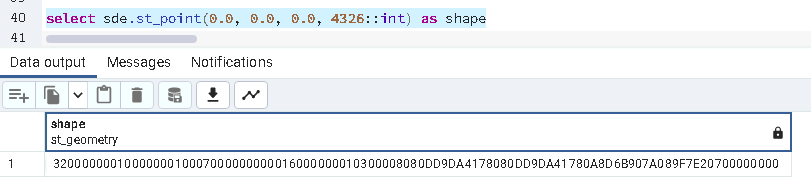

But funnily enough when you execute sde.st_point with three doubles and an int nothing strange happens, as a response you get a st_geometry type response.

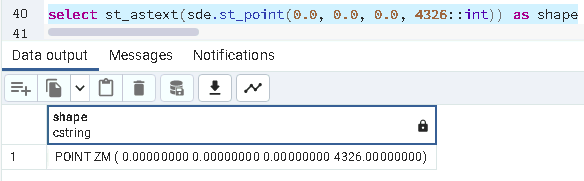

What? Well, because of the automatic cast from int -> double this simply ends up as the 4-doubles variant of the overload, making the the input srid value appear as m coordinate:

So how do you construct a 3D point st_geometry with ESRI SDE?

Short answer? You don’t. Or if you really need to then you can use one of the following work-arounds:

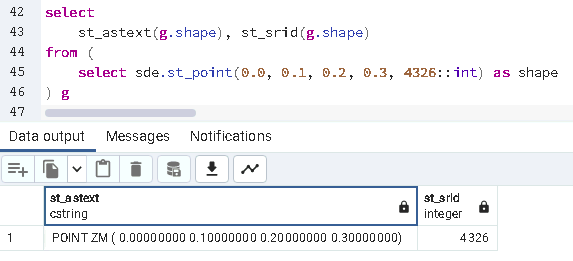

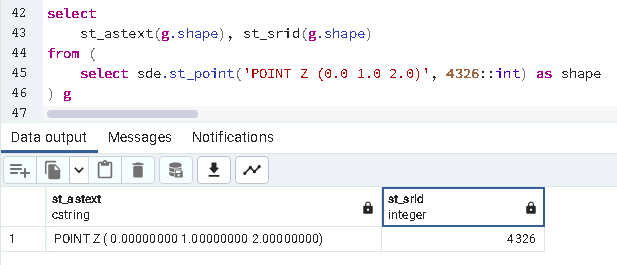

• WKT seems to work, but why would I opt to formatting numbers into text?

• If possible, retype the ESRI SDE geometry column that this geometry needs to go into as POINT ZM. But remember, this essentially requires a drop of the “feature class” (including any relationships etc.) and a recreate of the whole thing. So most probably if there’s already data in the table, this is not an option. Although, as a side-note: in essence the ESRI SDE is still just a RDBMS, so with a few tweaks in the sde system schema tables this could be achieved more sensibly, who knows… but that’s another topic completely.

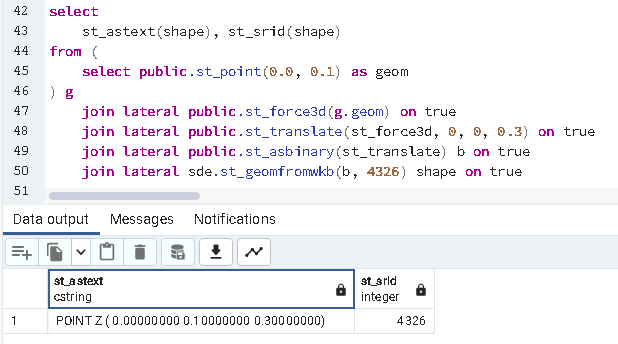

• PostGIS to the rescue. Although, a question here… if there’s already PostGIS present why would you use ESRI at all?

Whichever way of the above to opt for, the thing to keep in mind is that the srid identifier is not always the same as the well-known-epsg-number - because “reasons” which I guess (though I never really dug into that) are to do with layer tolerance / resolution settings. So even if you think you are constructing epsg:4326 geometries then in reality you maybe shouldn’t because the layer srid that ESRI is expecting might be something completely different. Since srid is defined in (at least?) two different locations (sde.sde_geometry_columns and sde.sde_layers) which one should be used? Who knows, but I guess the sde_geometry_columns table is more of an interoperability compliance thing. While sde_layers is for ESRI layers themselves. So instead it makes sense to use the

sde.spatial_ref_info(schemaname varchar, tablename varchar, geometrycolumn varchar)

function, which knows the correct places to look for.
